NEW: CS1 on Digital Label Press

To see our CS1 monitoring labels with variable data and updating at every label, view this video of one of our clients' HP Indigo digital press.

Please click the image to open the video.

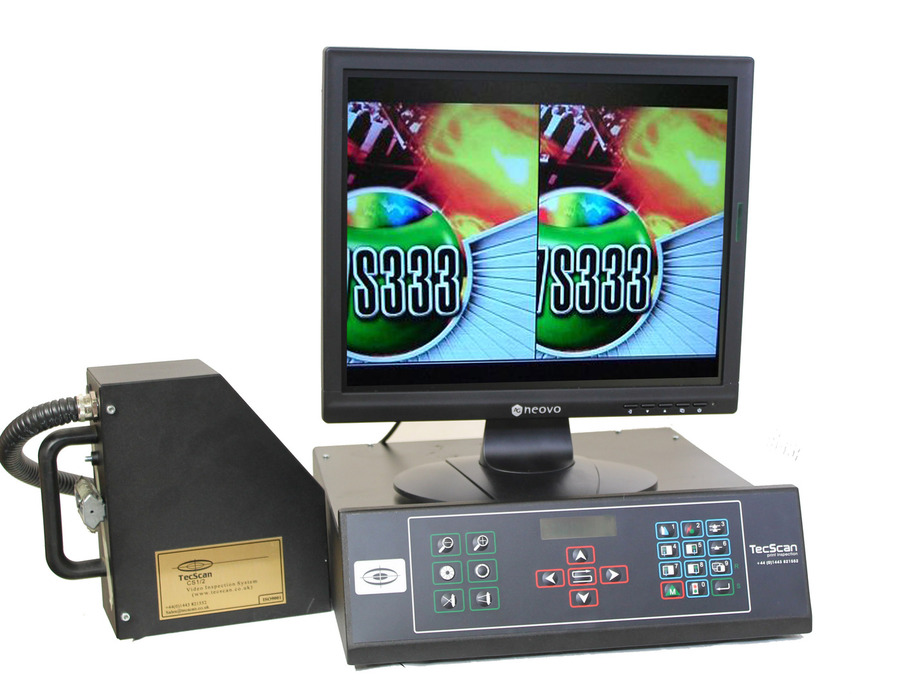

ColourScan 1/2

Tecscan, the first company to pioneer video web inspection in 1986, introduce the Series 4 CS1/2, the most advanced low cost video web inspection system available on today's market. This high-specification system is a result of Tecscan's long standing experience in design, manufacture, development and marketing of video web inspection equipment. The dedicated hardware is specified for performance and reliability, with 30-bit true colour frame store resulting in 1074 million colours, matched to a state of the art camera producing 460 TV line resolution and incorporating an incredible 40:1 zoom lens for improved magnification. The system includes features such as split screen and a label check facility which is unique to our systems, enabling automatic 100% repeat length monitoring. The CS1 has the additional benefit of system expandability.

Features:

• Super HAD technology camera

• High resolution hardware

• 1072 million colours

• Battery backed

• 40:1 motorised zoom lens with customised optics

• Standard field of view 110mm x 83mm maximum

• Camera case dimensions: W 110mm, H 230mm, L 200mm

• Traverse size 500mm-2000mm

• Manufactured for self installation

• Designed for performance, built to last.

Minimises:

• Waste

• Rejected products

• Make-ready time

• Press production time per job

• Operator involvement
